ATGZ-630 630A, upto 24kV, Interface C, Equipment Bushing
ATGZ-630 630A, up to 24kV Equipment Bushing with Interface C. Factory-direct quality and reliable power solutions for your electrical needs.
Request a Quote
PRODUCTS DETAILS
Application The interface of ATGZ is type C, as per specification of standard EN50180. It is for use in equipment insulated with SF6 gas. Features • Superior electrical performance
• Fully insulated with submersible

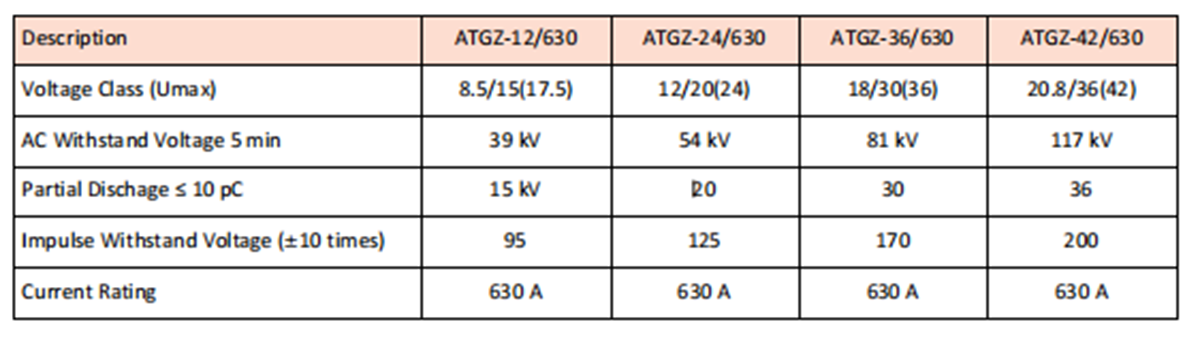

Specifications and standard
ATGZ-630 meets the requirements
of CENELEC EN 50180 and IEC
60137.
Quality guarantee:
• Periodic X-Ray analysis
• Physical inspection
• QR code: 100% traceable
• Each bushing is tested for AC withstand
and partial discharge prior to leaving
the factory.
